| Place of Origin: | Shenzhen,China |
| Brand Name: | TFT LCD video module |
| Certification: | CE/RoHS/FCC |
| Model Number: | MO700 |
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | 10-20 USD/pcs |
| Packaging Details: | bubble bag |
| Delivery Time: | 7-10 days |
| Payment Terms: | WesternUnion/,T/T |
| Supply Ability: | 200,000 pcs/month |
| Material: | TFT LCD Module+PCBA+battery | USED For: | LCD Video Display Module |
|---|---|---|---|
| Type: | Video Display Module | Battery: | 600mah/1200 /2000 MAH |
| Speaker: | 8Ω2W | Screen Type: | TFT Or IPS |
| Screen Size: | 2.4/4.3/5/7/10.1 Inch | Buttons: | Play/Pause,pre/next,volume-,volume+ |
| Memory: | 128MB--8GB Max | Media Formats: | Video And Photos |
| Accessory: | USb Cable Or Adaptor |

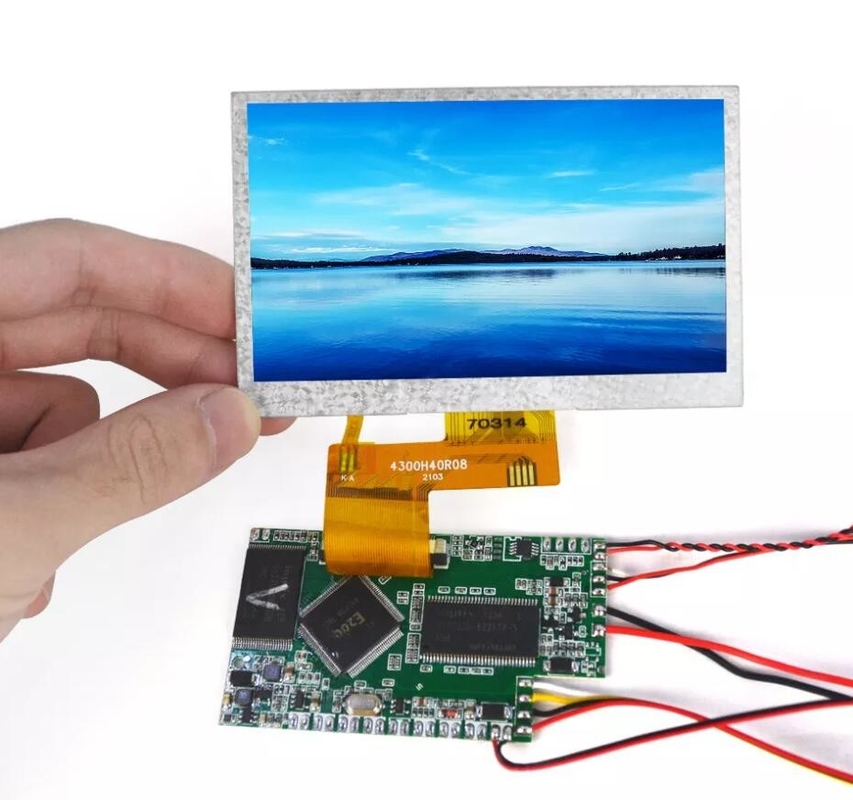

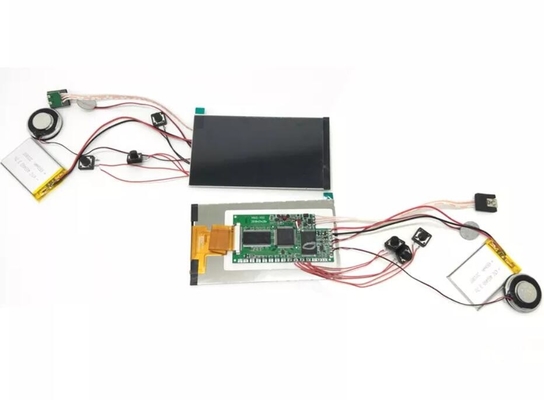

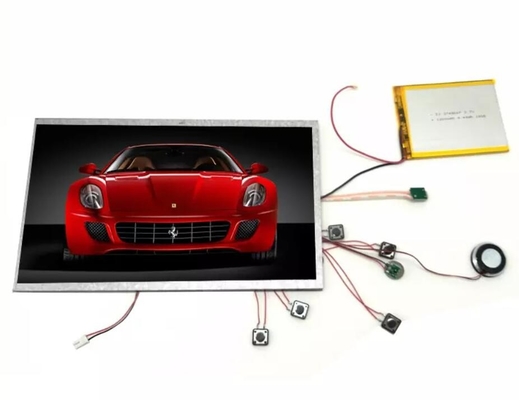

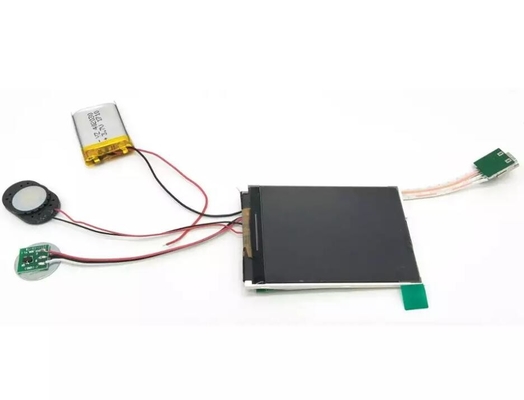

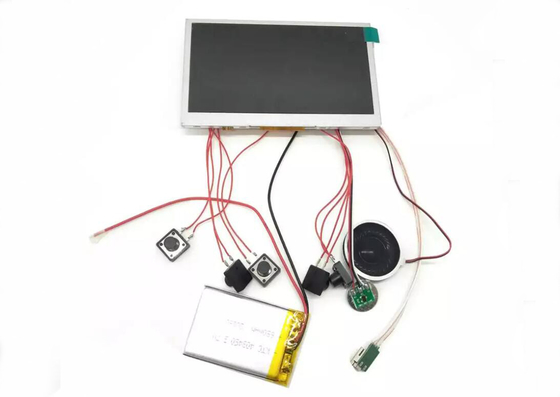

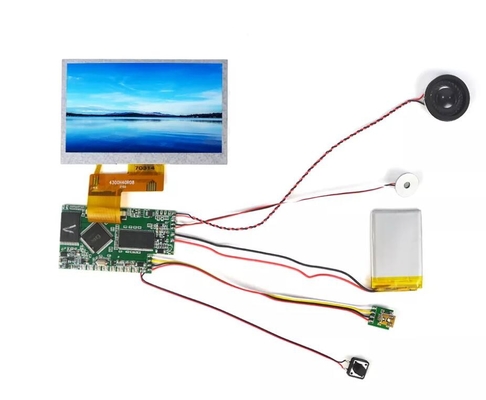

| Item Name | Customized LCD 4.3"/5"/7"/10.1" Inch Video Brochure Display Video Module |
| Supply Type | OEM/ODM |
| Display Size | 2.4inch,4.3inch,5inch,7inch,10inch |
| Video format | MP4,3GP,AVI MOV,ANI,ETC. |
| Picture format | BMP,JPG,JPEG,ETC. |
| Music format | MP3,WMA,PCM,ETC. |
| Power on/off | Light sensor, Magnet switch, motion sensor, push buttons |
| Paper Size | A4,A5 or customized size |
| Usage | Advertising Brand,Business Gift,Wedding Invitation,Brand promotion. |
| Product style | Aritifical |
| Video resolution | Hd video maximum 1920*1080 minimum 320*240. |
| Product categories | TFT LCD video module |
Screen accurate information
| Screen Size | Display Area | Screen Ratio | Resolution | Battery | Working time |
| 2.4 Inch TFT LCD Screen | 48mm*36mm | 4:3 | 320*240 | 320~24000mA | >=2hours |
| 4.3 Inch TFT LCD Screen | 94mm*53mm | 16:9 | 480*272 | 320~24000mA | >=2hours |
| 5 Inch TFT LCD Screen | 110mm*61mm | 16:9 | 480*272 | 320~24000mA | >=2hours |
| 5 Inch IPS Screen | 107mm*64mm | 16:9 | 800*480 | 320~24000mA | >=2hours |
| 7 Inch TFT LCD Screen | 152mm*85mm | 16:9 | 800*480 | 320~24000mA | >=2hours |
| 7 Inch IPS Screen | 152mm*85mm | 16:9 | 1024*600 | 320~24000mA | >=2hours |
| 10 Inch TFT LCD Screen | 221mm*124mm | 16:9 | 1024*600 | 320~24000mA | >=2hours |
Step by step instructions for purchasing LCD video brochure
1.Confirm which screen size you want to use
2.Confirm paper card size & Orientation & print or without print
Below some size for your reference,also customized size available:
2.4" screen: 90x52mm, 9x9cm, 21x11.5x0.8cm (Landscape), 5x7"(potrait).
5" screen: 21x11.5x0.8cm(Landscape),21x14.8x0.8cm (Landscape),20.5x10.5x.8cm(landscape).
7" screen: A5 21x14.8x0.8cm(landscape) & A4 21x29.7x0.8cm(portrait).
10.1" screen: A4
Popular size is: A4 & A5
Orientation:
3.Choose buttons
Normal button: Play/Pause,Previous,Next,Volume+,Volume-,On/off,Power,Video 1,Video 2 ...
Playing mode options:
- Video play automatically(video play when open the card,video close when close the card): Except On/off button,the other buttons option(Non-button or Multi- button)
- Video play with On/off button(open card,press on/off button,play/close video): the other buttons option(Only on/off button or Multi-button)
- With touch screen,no buttons
4.Confirm memory capacity
128MB,256MB,512MB,1GB,2GB,4GB,8GB available.Considering your video size,to chose suitable memory capacity.
5.Confirm order quantity
6.we send blank template for your artwork graphic design.
7.Client finish the artwork and send back to us.
8.Sample proof(digital printing).
9.Bulk production and delivery.
